TestToolBox::CheckerForMultipleSequences Class Reference
#include <CheckerForMultipleSequences.h>

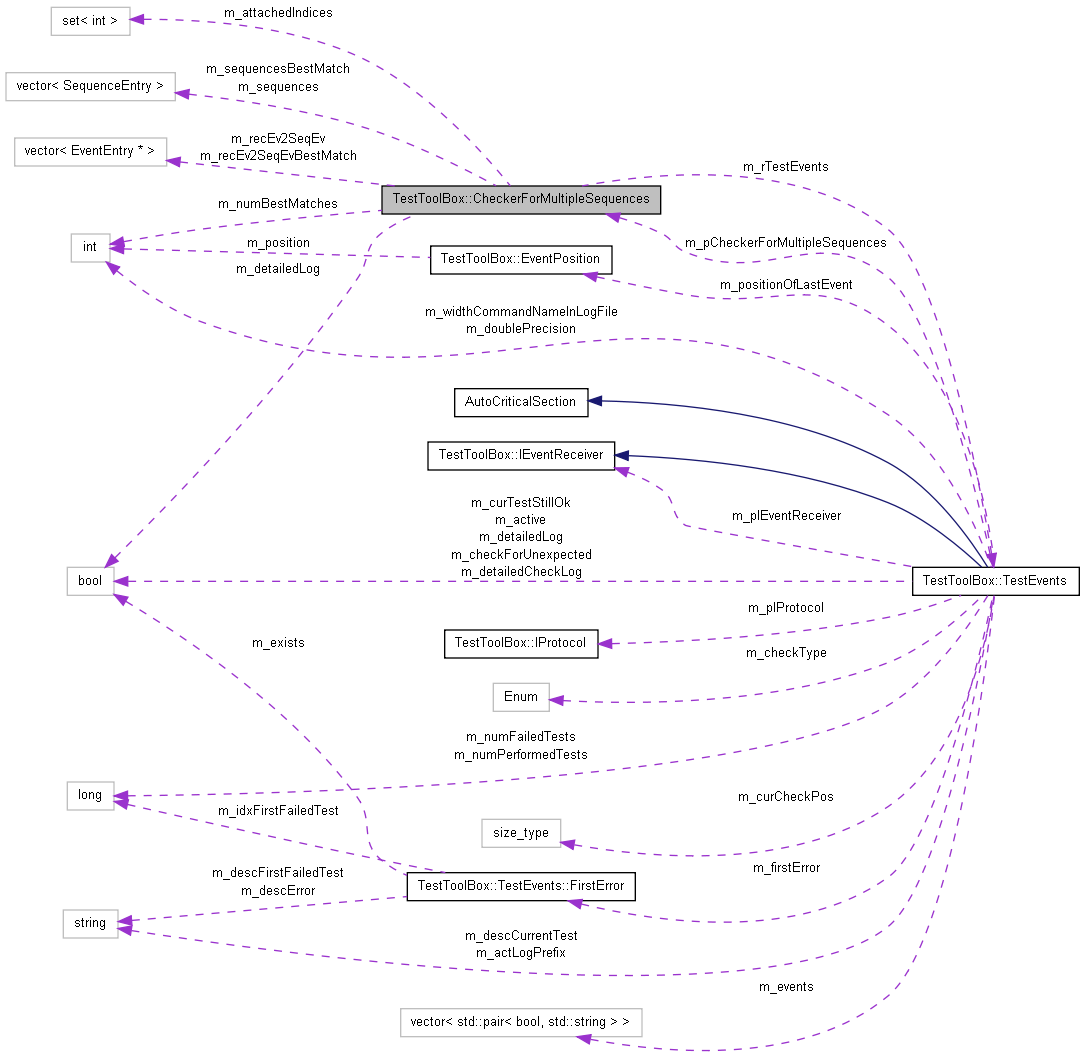

Collaboration diagram for TestToolBox::CheckerForMultipleSequences:
Classes | |
| struct | EventEntry |
| struct | SearchInfo |
| struct | SequenceEntry |
Public Member Functions | |
| CheckerForMultipleSequences (TestEvents &in_rTestEvents) | |
| void | DefineSequence (std::string const &in_nameSequence) |
| Define and select a sequence for which expected events may follow in the expected order. | |
| void | StoreExpectedEventWithinSelectedSequence (std::string const &in_expectedEvent, const char *in_fileName, const long in_lineNum) |
| Define the next expected event for the currently selected sequence. | |
| void | CheckDefinedSequences (const char *in_fileName=0, const long in_lineNum=0) |
| Check if the event sequences defined by DefineSequence() and subsequent calls to TTB_EXP()/StoreExpectedEventWithinSelectedSequence() match with the sequence of recorded events. | |
| void | ResetAll () |
| Clear all stored sequences. | |
| void | SetDetailedLog (bool in_detailedLog) |
| Log results of checking multiple sequences even when check was successful. | |
Private Types | |
| typedef std::vector< EventEntry > | EventEntries |
|
typedef std::vector < SequenceEntry > | SequenceEntries |
Private Member Functions | |
| void | CheckNextMatch (SearchInfo &io_searchInfo) |
| void | UndoLastMatch (SearchInfo &io_searchInfo) |
| void | MarkRecordedEventsAsChecked (void) |
| int | FindNextUncheckedPos (int in_startPos) |
| bool | FindFirstUnmatchedEvent (std::string &out_eventText, std::string &out_fileName, long &out_lineNum) |
| void | LogCheckResult (std::string const &in_headLine) |
Private Attributes | |
| TestEvents & | m_rTestEvents |
| Access to controlling instance of TestEvents. | |
| SequenceEntries | m_sequences |
| Defined sequences of events to be checked for sequential order. | |
| std::set< int > | m_attachedIndices |
| Indices of recorded events which have already been reserved for possible matches to defined sequence events. | |
| std::vector< EventEntry * > | m_recEv2SeqEv |
| Correlation from recorded events to possible match within sequence events. | |
| SequenceEntries | m_sequencesBestMatch |
| std::vector< EventEntry * > | m_recEv2SeqEvBestMatch |
| int | m_numBestMatches |
| bool | m_detailedLog |
Detailed Description
Class which checks if the set of recorded events matches with the expectations concerning several sequences of events which may interfere one another
The documentation for this class was generated from the following file:
